mobiLink配置工具
HART, FF,
PA多协议手持式配置访问工具
现场设备的调试、参数设置和维护的USB和蓝牙解决方案
-
一个工具可同时用于:HART主站, FF主机, PA主站
-

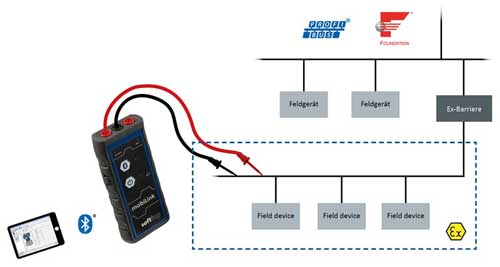

可用于临时连接现场总线或HART回路的附件,便于与现场设备进行单独交互
-
完全兼容的协议实施允许无干扰地访问正在运行的网络
-
凭借电池供电和蓝牙通讯,非常适合于手持主机设备
-
通过蓝牙或USB与主机通讯
-
内置电池和蓝牙通信可以使用智能手机和平板电脑等手持主机设备
-
USB接口可用于台式主机的操作
-
完全兼容FDT应用
-
支持FDT应用和主流工程工具
-
包括PACTware FDT应用和HART通信DTM
-
FF通信DTM和PA(可选项)
-
FF配置工具(可选项)
-
API用于集成到工程系统中
-
适用于危险区域
-
可用于Zone 1的EX认证
-
适用于本安电路的连接
-
适用于恶劣环境
-
用户界面:
按钮:电源开/关、蓝牙配对
LED指示灯:FIELDBUS模式、HART模式、蓝牙配对/激活、电池电量低、电源开关
-
FIELDBUS接口:
Connection: 4 mm banana type jacks (red/black), polarity has to be observed
Physical Layer: according to IEC 61158-2, Type 1: 31.25 Kbit/s, voltage mode
Nominal input current (Fieldbus):
10 mA in Bluetooth and regular USB mode
18 mA (with fieldbus > 9,5V) for increased battery life time in USB mode (controlled by application)
Fieldbus Terminator: No fieldbus terminator included
-

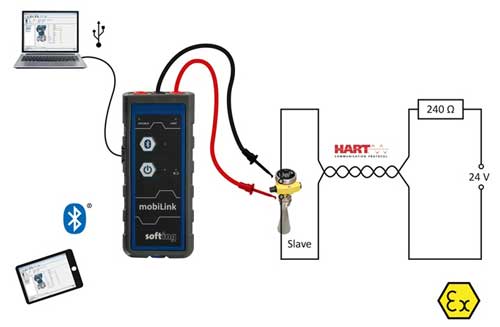

HART接口:
Connection: 4 mm banana type jacks (red/black)
Physical Layer: HART FSK compliant modem
-
本安参数:
EX ia IIB, Ui = 30 V or FISCO field device
Isolation: 1500 VDC between USB and Fieldbus, 1500 VDC between USB and HART
-
电源:
Battery: 3 * Alkaline, IEC-LR6, nominal voltage 1,5V
For use in hazardous area: Energizer E91 or Duracell Procell MN1500.
With batteries of other types or manufacturers certification is void.
Fieldbus interface (Medium Attachment Unit) powered by fieldbus.
-
尺寸:175 X 74 X 32mm
-
重量:330g
-
工作温度:-20~+50度
-
防护等级:IP54
订货号:
DBA-KM-020410
mobiLink for HART applications
LRA-KK-021971
Licence for FF CommDTM
LRA-NN-021972
Licence for PA CommDTM
LRA-KK-020721
Licence for FF Configuration Tool
ComConf
DBL-KM-020411
mobiLink HART incl. FF Comm DTM Licence
DBL-KM-020412
mobiLink HART incl. FF and PA Comm DTM
Licence
